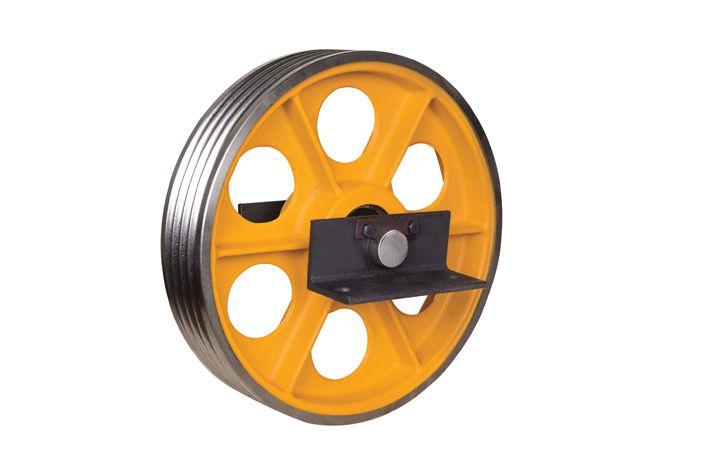

Diversion



Product Code : Diversion

Technical Details

Product Type Diameter Shaft Diameter (mm) No. of Pulleys Rope Diameter (mm) Width (mm)
AKSK240-3 ¯ 240 50 3 6-8 105
AKSK240-4 ¯ 240 50 4 6-8 105
AKSK240-5 ¯ 240 50 5 6-8 105
AKSK240-6 ¯ 240 50 6 6-8 105
AKSK240-7 ¯ 240 50 7 6-8 150
AKSK240-8 ¯ 240 50 8 6-8 150
AKSK240-9 ¯ 240 50 9 6-8 150
AKSK240-10 ¯ 240 50 10 6-8 150
AKSK320-3 ¯ 320 50 3 6-8 95
AKSK320-4 ¯ 320 50 4 6-8 95
AKSK320-5 ¯ 320 50 5 6-8 95
AKSK320-6 ¯ 320 50 6 6-8 125
AKSK320-7 ¯ 320 50 7 6-8 125
AKSK320-8 ¯ 320 50 8 6-8 165
AKSK320-9 ¯ 320 50 9 6-8 165
AKSK320-10 ¯ 320 50 10 6-8 165
AKSK360-3 ¯3 60 50 3 8-9-10 95
AKSK360-4 ¯3 60 50 4 8-9-10 95
AKSK360-5 ¯3 60 50 5 8-9-10 95
AKSK360-6 ¯3 60 50 6 8-9-10 125
AKSK400-4 ¯4 00 50 4 9-10 82
AKSK400-5 ¯4 00 50 5 9-10-11 105
AKSK400-6 ¯4 00 50 6 9-10-11 116
AKSK450-4 ¯ 450 50 4 10-11-12 92
AKSK450-5 ¯ 450 50 5 10-11-12 120
AKSK450-6 ¯ 450 50 6 10-11-12 120
AKSK480-4 ¯ 480 50 4 10-11-12 95
AKSK480-5 ¯ 480 50 5 10-11-12 130
AKSK480-6 ¯ 480 50 6 10-11-12 130
AKSK500-4 ¯ 500 50 4 10-11-12-13 95
AKSK500-5 ¯ 500 50 5 10-11-12-13 130
AKSK500-6 ¯ 500 50 6 10-11-12-13 130
AKSK500-7 ¯ 500 50 7 10-11-12-13 150
AKSK520-4 ¯ 520 55 4 11-12-13 89
AKSK520-5 ¯ 520 55 5 11-12-13 120
AKSK520-6 ¯ 520 55 6 11-12-13 120
AKSK520-7 ¯ 520 55 7 11-12-13 155
AKSK520-8 ¯ 520 55 8 11-12-13 155
AKSK560-4 ¯ 560 55 4 11-12-13-14 95
AKSK560-5 ¯ 560 55 5 11-12-13-14 95
AKSK560-6 ¯ 560 55 6 11-12-13-14 130
AKSK560-7 ¯ 560 55 7 11-12-13-14 150
AKSK600-5 ¯ 600 55 5 11-12 100
AKSK600-6 ¯ 600 55 6 11-12 100
AKSK600-7 ¯ 600 55 7 10-11 125
AKSK600-8 ¯ 600 55 8 10-11 125
AKSK600-7A ¯ 600 55 7 12-13 150
AKSK600-8A ¯ 600 55 8 12-13 150
AKSK680-4 ¯ 680 55 4 10-11 95
AKSK680-5 ¯ 680 55 5 10-11 95
AKSK680-6 ¯ 680 55 6 10-11 130
AKSK680-7 ¯ 680 55 7 10-11 130
