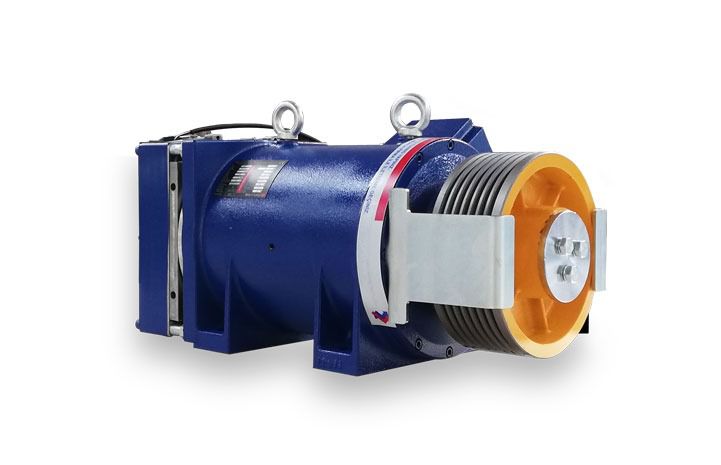

Product Code : S100
Technical Details
Car Speed | Capacity | Pulley Size | Power | In | Pole | Rev | Torque |
Suspension Type: 2:1 Static Load: 7000 |
|||||||
0,63 m/s | 320 KG | 210x4x6,5mm | 1,2 | 4,5 A | 20 Pole 19,16 Hz | 115 | 100 |
400 KG | 210x5x6,5mm | 1,6 | 5 A | 20 Pole 19,16 Hz | 115 | 126 | |
480 KG | 210x5x6,5mm | 1,9 | 6 A | 20 Pole 19,16 Hz | 115 | 151 | |
630 KG | 210x7x6,5mm | 2,4 | 7,5 A | 20 Pole 19,16 Hz | 115 | 198 | |
1.00 m/s | 320 KG | 320x4x8mm | 1,9 | 6 A | 20 Pole 30,33 Hz | 182 | 100 |
400 KG | 320x4x8mm | 2,4 | 7,5 A | 20 Pole 30,33 Hz | 182 | 126 | |
480 KG | 320x4x8mm | 2,9 | 9 A | 20 Pole 30,33 Hz | 182 | 151 | |
560 KG | 320x5x8mm | 3,8 | 11 A | 20 Pole 30,33 Hz | 182 | 198 | |
1.60 m/s | 320 KG | 320x4x8mm | 3 | 9 A | 20 Pole 48,50 Hz | 291 | 100 |
400 KG | 320x4x8mm | 3,9 | 11 A | 20 Pole 48,50 Hz | 291 | 126 | |
480 KG | 320x4x8mm | 4,6 | 13 A | 20 Pole 48,50 Hz | 291 | 151 | |
560 KG | 320x5x8mm | 6 | 17 A | 20 Pole 48,50 Hz | 291 | 198 | |
Suspension Type: 2:1 Static Load: 7000 |
|||||||
2.00 m/s | 320 KG | 320x4x8mm | 3,8 | 11 A | 20 Pole 60,66 Hz | 364 | 100 |
400 KG | 320x4x8mm | 4,8 | 14 A | 20 Pole 60,66 Hz | 364 | 126 | |
480 KG | 320x4x8mm | 5,8 | 16 A | 20 Pole 60,66 Hz | 364 | 151 | |
630 KG | 320x5x8mm | 7,5 | 19 A | 20 Pole 60,66 Hz | 364 | 198 | |
Suspension Type: 2:1 Static Load: 7000 |
|||||||
0,63 m/s | 320 KG | 240x4x6,5mm | 1,2 | 4,5 A | 20 Pole 16,66 Hz | 100 | 115 |
400 KG | 240x5x6,5mm | 1,6 | 5 A | 20 Pole 16,66 Hz | 100 | 143 | |
480 KG | 240x5x6,5mm | 1,9 | 6 A | 20 Pole 16,66 Hz | 100 | 173 | |
630 KG | 240x6x6,5mm | 2,4 | 7,5 A | 20 Pole 16,66 Hz | 100 | 227 | |
1.00 m/s | 320 KG | 240x4x6,5mm | 1,9 | 6 A | 20 Pole 26,50 Hz | 159 | 115 |
400 KG | 240x5x6,5mm | 2,4 | 7,5 A | 20 Pole 26,50 Hz | 159 | 143 | |
480 KG | 240x5x6,5mm | 2,9 | 9 A | 20 Pole 26,50 Hz | 159 | 173 | |
630 KG | 240x6x6,5mm | 3,8 | 11 A | 20 Pole 26,50 Hz | 159 | 227 | |
1.60 m/s | 320 KG | 240x4x6,5mm | 3 | 9 A | 20 Pole 42,50 Hz | 255 | 115 |
400 KG | 240x5x6,5mm | 3,9 | 11 A | 20 Pole 42,50 Hz | 255 | 143 | |
480 KG | 240x5x6,5mm | 4,6 | 13 A | 20 Pole 42,50 Hz | 255 | 173 | |
630 KG | 240x6x6,5mm | 6 | 17 A | 20 Pole 42,50 Hz | 255 | 227 | |
2.00 m/s | 320 KG | 240x4x6,5mm | 3,8 | 11 A | 20 Pole 53,16 Hz | 319 | 115 |
400 KG | 240x5x6,5mm | 4,8 | 14 A | 20 Pole 53,16 Hz | 319 | 143 | |
480 KG | 240x5x6,5mm | 5,8 | 16 A | 20 Pole 53,16 Hz | 319 | 173 | |
630 KG | 240x6x6,5mm | 7,5 | 19 A | 20 Pole 53,16 Hz | 319 | 227 | |
0,63 m/s | 320 KG | 320x4x8mm | 1,2 | 4,5 A | 20 Pole 12,50 Hz | 75 | 154 |
400 KG | 320x5x8mm | 1,6 | 5 A | 20 Pole 12,50 Hz | 75 | 192 | |
480 KG | 320x5x8mm | 1,9 | 6 A | 20 Pole 12,50 Hz | 75 | 230 | |
630 KG | 320x7x8mm | 2,4 | 7,5 A | 20 Pole 12,50 Hz | 75 | 302 | |
800 KG | 320x8x8mm | 2,9 | 9 A | 20 Pole 12,50 Hz | 75 | 383 | |
1.00 m/s | 320 KG | 320x4x8mm | 1,9 | 6 A | 20 Pole 20 Hz | 120 | 154 |
400 KG | 320x5x8mm | 2,4 | 7,5 A | 20 Pole 20 Hz | 120 | 192 | |
480 KG | 320x5x8mm | 2,9 | 9 A | 20 Pole 20 Hz | 120 | 230 | |
630 KG | 320x7x8mm | 3,8 | 11 A | 20 Pole 20 Hz | 120 | 302 | |
800 KG | 320x8x8mm | 4,8 | 14 A | 20 Pole 20 Hz | 120 | 383 | |
1.60 m/s | 320 KG | 320x4x8mm | 3 | 10 A | 20 Pole 31,38 Hz | 191 | 154 |
400 KG | 320x5x8mm | 3,9 | 11 A | 20 Pole 31,38 Hz | 191 | 192 | |
480 KG | 320x5x8mm | 4,6 | 14 A | 20 Pole 31,38 Hz | 191 | 230 | |
630 KG | 320x7x8mm | 6 | 17 A | 20 Pole 31,38 Hz | 191 | 302 | |
800 KG | 320x8x8mm | 7,7 | 20 A | 20 Pole 31,38 Hz | 191 | 383 | |
2.00 m/s | 320 KG | 320x4x8mm | 3,8 | 11 A | 20 Pole 39,83 Hz | 239 | 154 |
400 KG | 320x5x8mm | 4,8 | 13 A | 20 Pole 39,83 Hz | 239 | 192 | |
480 KG | 320x5x8mm | 5,8 | 16 A | 20 Pole 39,83 Hz | 239 | 230 | |
630 KG | 320x7x8mm | 7,5 | 19 A | 20 Pole 39,83 Hz | 239 | 302 | |
800 KG | 320x8x8mm | 9,7 | 24 A | 20 Pole 39,83 Hz | 239 | 383 |
