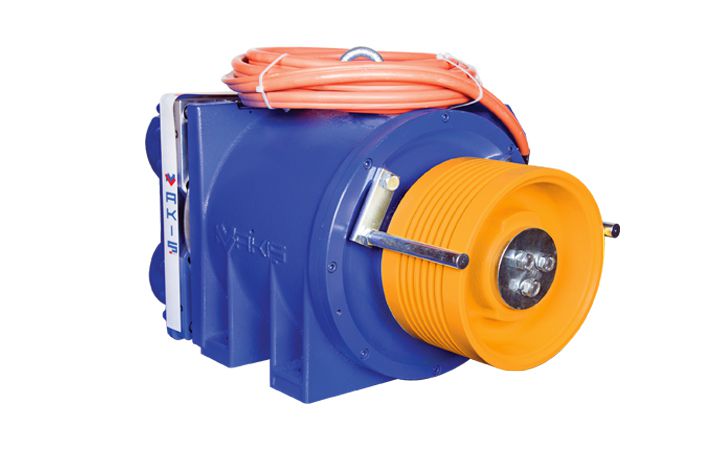

AK4

Product Code : AK4

Car Speed	Capacity	Pulley Size	Power	In	Pole	Rev	Torque
Suspension Type: 2:1 Static Load: 7000 KG
0,63 m/s	630 KG	400X5X10mm	2,7	9A	20P10Hz	60	430
	800 KG	400X5X10mm	3,5	10,5A	20P10Hz	60	545
	800 KG	320X8X5mm	3,5	10,5A	20P12,53Hz	75	436
	1000 KG	320X7X8mm	4,4	12,5A	20P 12,53Hz	75	545
1,00 m/s	630 KG	400X5X10mm	4,3	14A	20P16Hz	95	430
	800 KG	400X5X10mm	5,5	15A	20P16Hz	95	545
	1000 KG	320X7X8mm	6,9	18A	20P20Hz	120	545
	800 KG	320X5X8mm	5,5	15A	20P 20Hz	120	436
1,60 m/s	630 KG	400X5X10mm	6,9	18,5A	20P 25,50Hz	153	430
	800 KG	400X5X10mm	8,8	23A	20P 25,50Hz	153	545
	800 KG	320X5X8mm	8,8	23A	20P 31,83Hz	191	436
	1000 KG	320X7X8mm	11	30A	20P 31,83Hz	191	545
2,00 m/s	630 KG	400X5X10mm	8,6	20A	20P 31,83Hz	191	430
	800 KG	400X5X10mm	11	25A	20P 31,83Hz	191	545
	800 KG	320X7X8mm	11	25A	20P 39,80Hz	239	436
	1000 KG	320X8X8mm	13,7	33A	20P 39,80Hz	239	545
2,50 m/s	630 KG	400X6X10mm	10,8	25A	20P 39,80Hz	239	430
	800 KG	400X6X10mm	13,7	32A	20P 39,80Hz	239	545
	1000 KG	320X8X8mm	13,7	32A	20P 49,74Hz	298	436
	1000 KG	320X9X8mm	17,1	40A	20P 49,74Hz	298	545
Suspension Type: 1:1 Static Load: 3500 KG
0,63 m/s	400 KG	320X4X8mm	18	6A	20P 6,27Hz	38	392
0,63 m/s	480 KG	320X5X8mm	2,1	6,5A	20P 6,27Hz	38	470
1,00 m/s	400 KG	320X5X8mm	2,8	9A	20P 10Hz	60	392
1,00 m/s	480 KG	320X6X8mm	3,3	10A	20P 10Hz	60	470
1,60 m/s	400 KG	320X6X8mm	4,4	12A	20P 16Hz	95	392
1,60 m/s	480 KG	320X6X8mm	5,3	14,5A	20P 16Hz	95	470
2,00 m/s	400 KG	320X6X8mm	5,5	17A	20P 20Hz	120	392
2,00 m/s	480 KG	320X6X8mm	6,6	21A	20P 20Hz	120	470
