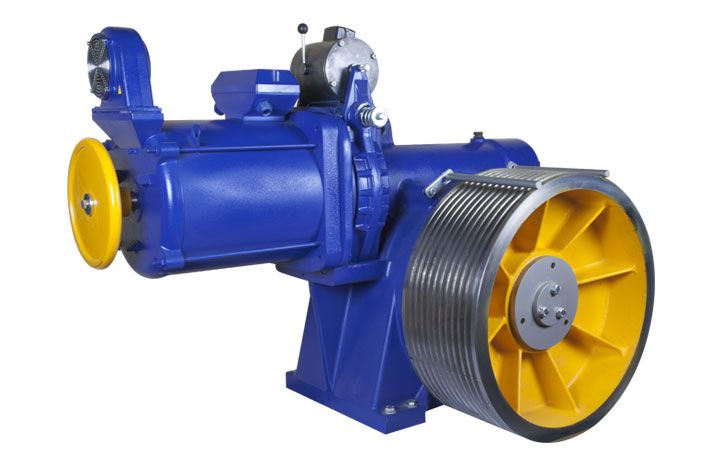

Product Code : ZF 142 YAN YATAKSIZ

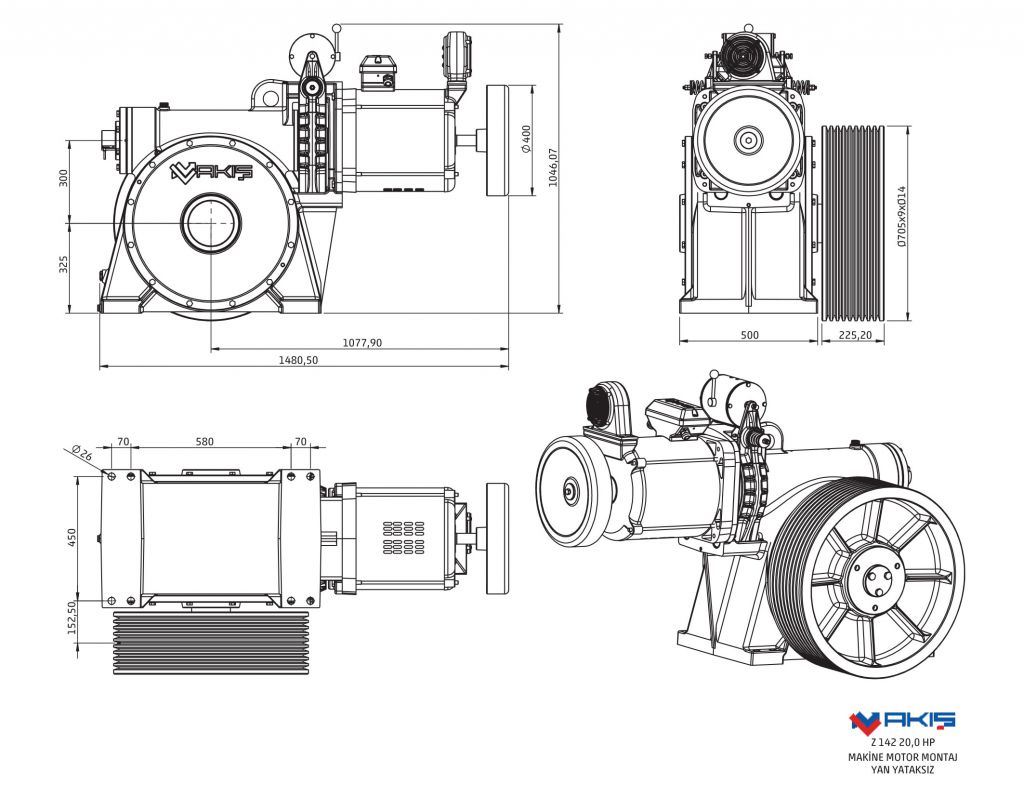

Technical Details
| Product Type | Suspension Type | Pulley Size | Static Load | Car Speed | Capacity | Ratio |
| ZF 142 17,50 KW | 1:1 | 700*11*14 | 10000 KG | 1,00 m/s | 4575 KG | 55/1 |
| 875*9*14 | 10000 KG | 1,20 m/s | 3680 KG | 55/1 | ||
| 700*10*12 | 10000 KG | 1,60 m/s | 3075 KG | 69/2 | ||
| 875*8*12 | 10000 KG | 2,00 m/s | 2400 KG | 69/2 | ||
| 700*10*10 | 10000 KG | 2,40 m/s | 2025 KG | 65/3 | ||
| 875*8*10 | 10000 KG | 3,20 m/s | 1600 KG | 65/3 | ||
| ZF 142 18,50 KW | 700*12*14 | 10000 KG | 1,00 m/s | 4880 KG | 55/1 | |
| 875*10*14 | 10000 KG | 1,20 m/s | 3900 KG | 55/1 | ||
| 700*10*12 | 10000 KG | 1,60 m/s | 3225 KG | 69/2 | ||
| 875*9*12 | 10000 KG | 2,00 m/s | 2560 KG | 69/2 | ||
| 700*10*10 | 10000 KG | 2,40 m/s | 2175 KG | 65/3 | ||
| 875*9*10 | 10000 KG | 3,20 m/s | 1725 KG | 65/3 | ||
| ZF 142 22,00 KW | 700*14*14 | 10000 KG | 1,00 m/s | 5775 KG | 55/1 | |
| 875*11*14 | 10000 KG | 1,20 m/s | 4640 KG | 55/1 | ||
| 700*12*12 | 10000 KG | 1,60 m/s | 3840 KG | 69/2 | ||
| 875*10*12 | 10000 KG | 2,00 m/s | 3040 KG | 69/2 | ||
| 700*9*12 | 10000 KG | 2,40 m/s | 2560 KG | 65/3 | ||
| 875*10*10 | 10000 KG | 3,20 m/s | 2025 KG | 65/3 | ||
| ZF 142 30,00 KW | 700*12*16 | 10000 KG | 1,00 m/s | 6880 KG | 55/1 | |
| 875*13*14 | 10000 KG | 1,20 m/s | 5475 KG | CC | ||
| 700*12*14 | 10000 KG | 1,60 m/s | 5250 KG | 69/2 | ||
| 875*10*14 | 10000 KG | 2,00 m/s | 4200 KG | 69/2 | ||
| 700*9*14 | 10000 KG | 2,40 m/s | 3525 KG | 65/3 | ||
| 875*10*12 | 10000 KG | 3,20 m/s | 2800 KG | 65/3 | ||
| ZF 142 37,00 KW | 700*16*16 | 10000 KG | 1,00 m/s | 9750 KG | 55/1 | |
| 875*14*16 | 10000 KG | 1,20 m/s | 7800 KG | 55/1 | ||
| 700*14*14 | 10000 KG | 1,60 m/s | 6480 KG | 69/2 | ||
| 875*12*14 | 10000 KG | 2,00 m/s | 5200 KG | 69/2 | ||
| 700*10*14 | 10000 KG | 2,40 m/s | 4350 KG | 65/3 | ||
| 875*9*14 | 10000 KG | 3,20 m/s | 3450 KG | 65/3 |
