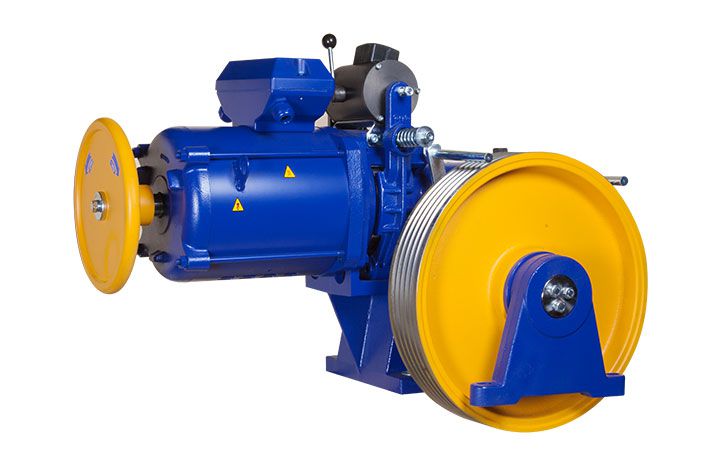

Product No : ZF 102 YAN YATAKALI
Technical Details
| Product Type | Suspension Type | Pulley Size | Static Load | Car Speed | Capacity | Rotio |
| ZF 102 5,50 KW | 1:1 | 500*5*10 | 5500 KG | 1,00 m/s | 720 KG | 39/1 |
| 620*5*10 | 5500 KG | 1,20 m/s | 600 KG | 39/1 | ||
| 500*5*10 | 5500 KG | 1,60 m/s | 500 KG | 49/2 | ||
| 620*4*10 | 5500 KG | 2,00 m/s | 400 KG | 49/2 | ||
| 500*4*10 | 5500 KG | 2,40 m/s | 320 KG | 46/3 | ||
| ZF 102 7,50 KW | 1:1 | 500*6*10 | 5500 KG | 1,00 m/s | 1000 KG | 39/1 |
| 620*6*10 | 5500 KG | 1,20 m/s | 800 KG | 39/1 | ||
| 620*5*10 | 5500 KG | 2,00 m/s | 550 KG | 49/2 | ||
| 500*5*10 | 5500 KG | 2,40 m/s | 400 KG | 46/3 | ||
| 620*4*10 | 5500 KG | 3,20 m/s | 320 KG | 46/3 | ||
| ZF 102 9,00 KW | 1:1 | 500*6*10 | 5500 KG | 1,00 m/s | 1125 KG | 39/1 |
| 620*6*10 | 5500 KG | 1,20 m/s | 960 KG | 39/1 | ||
| 500*5*10 | 5500 KG | 1,60 m/s | 800 KG | 49/2 | ||
| 620*5*10 | 5500 KG | 2,00 m/s | 630 KG | 49/2 | ||
| 500*5*10 | 5500 KG | 2,40 m/s | 525 KG | 46/3 | ||
| 620*4*10 | 5500 KG | 3,20 m/s | 450 KG | 46/3 | ||
| ZF 102 11,00 KW | 1:1 | 500*7*10 | 5500 KG | 1,00 m/s | 1440 KG | 39/1 |
| 620*6*10 | 5500 KG | 1,20 m/s | 1125 KG | 39/1 | ||
| 500*6*10 | 5500 KG | 1,60 m/s | 1000 KG | 49/2 | ||
| 620*5*10 | 5500 KG | 2,00 m/s | 800 KG | 49/2 | ||
| 500*5*10 | 5500 KG | 2,40 m/s | 640 KG | 46/3 | ||
| 620*5*10 | 5500 KG | 3,20 m/s | 525 KG | 46/3 | ||
| ZF 102 15,00 KW | 1:1 | 620*6*10 | 5500 KG | 2,00 m/s | 1050 KG | 49/2 |
| 500*6*10 | 5500 KG | 2,40 m/s | 880 KG | 46/3 | ||
| 620*5*10 | 5500 KG | 3,20 m/s | 720 KG | 46/3 |
